HEL Performance Adjustable Master Cylinder (19mm Nickel)

  • 销售额
  • 常规价格 $200.95

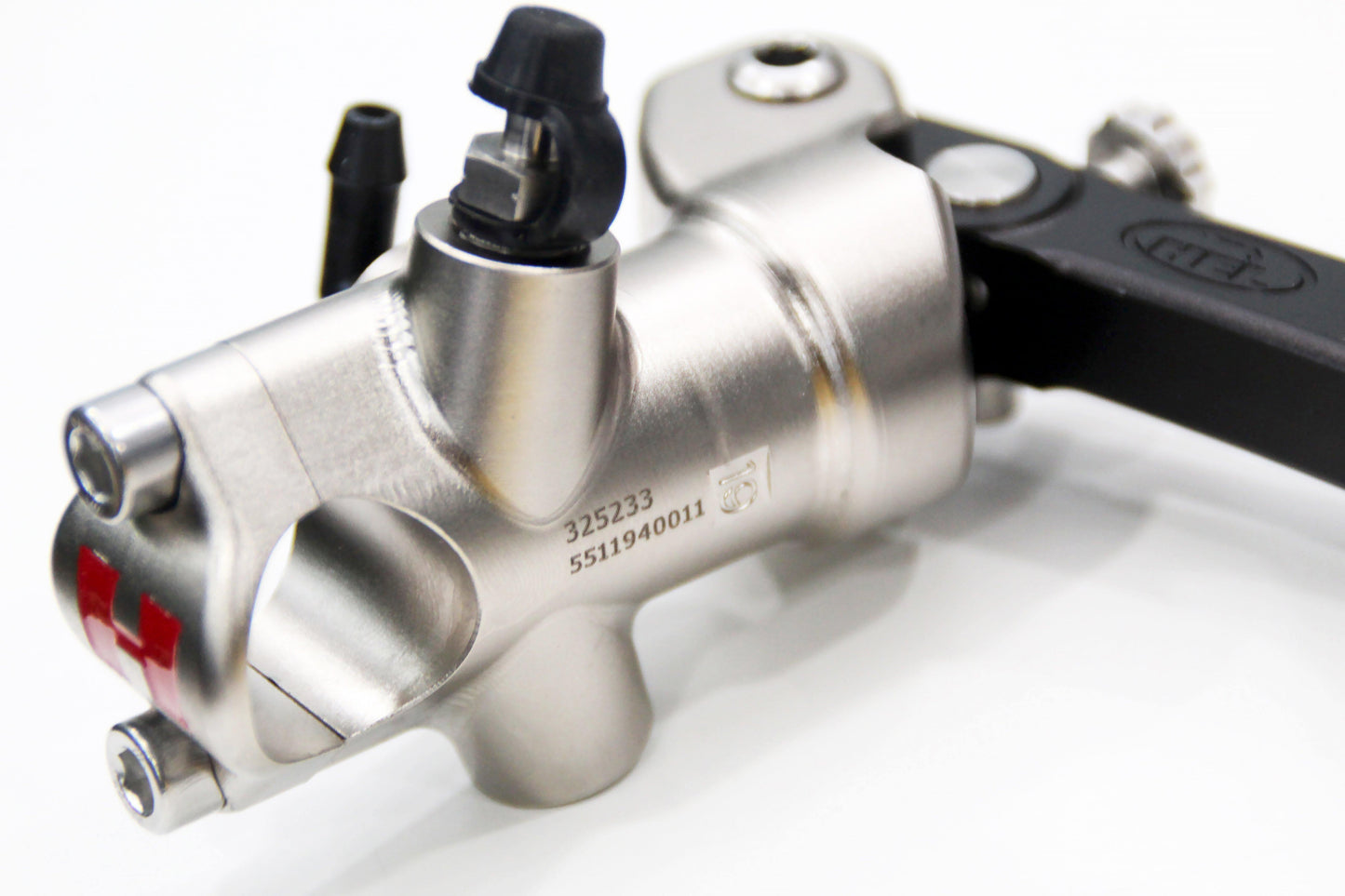

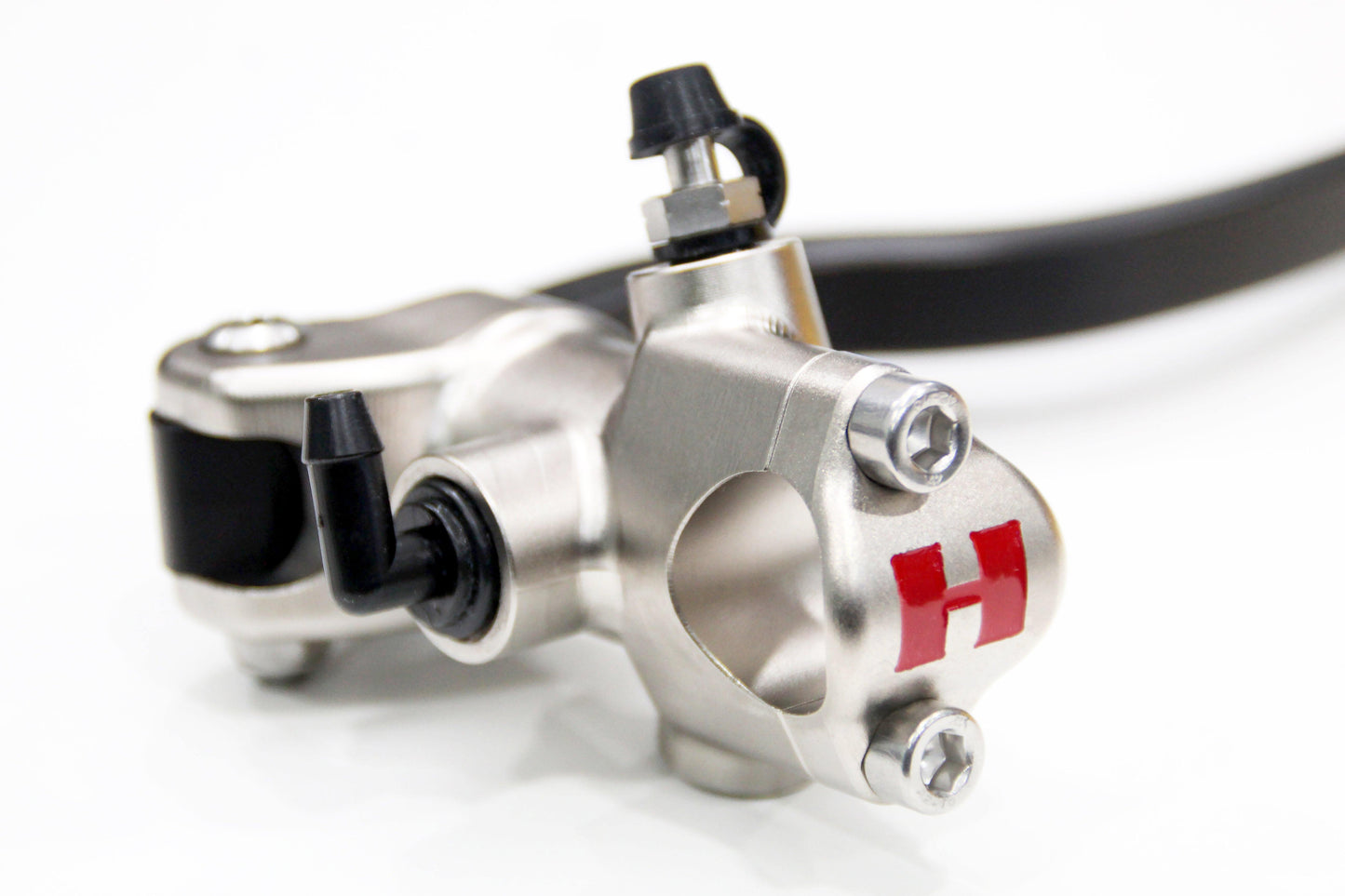

  • Introducing, HEL's Full CNC Machined Master Cylinder in 19MM with Nickel body finish.
  • 19MM Master Cylinder is designed for bikes with two calipers. This product can be installed interchangeably, either on Left Hand or Right Hand Side.


  • All metal parts of the master cylinder (including levers) are produced in-house on CNC machines from solid billets of 6082-T6 aluminium.
  • Each master cylinder body takes an hour of machining time to remove the material to HEL's exacting standards with the bore measured automatically in cycle.

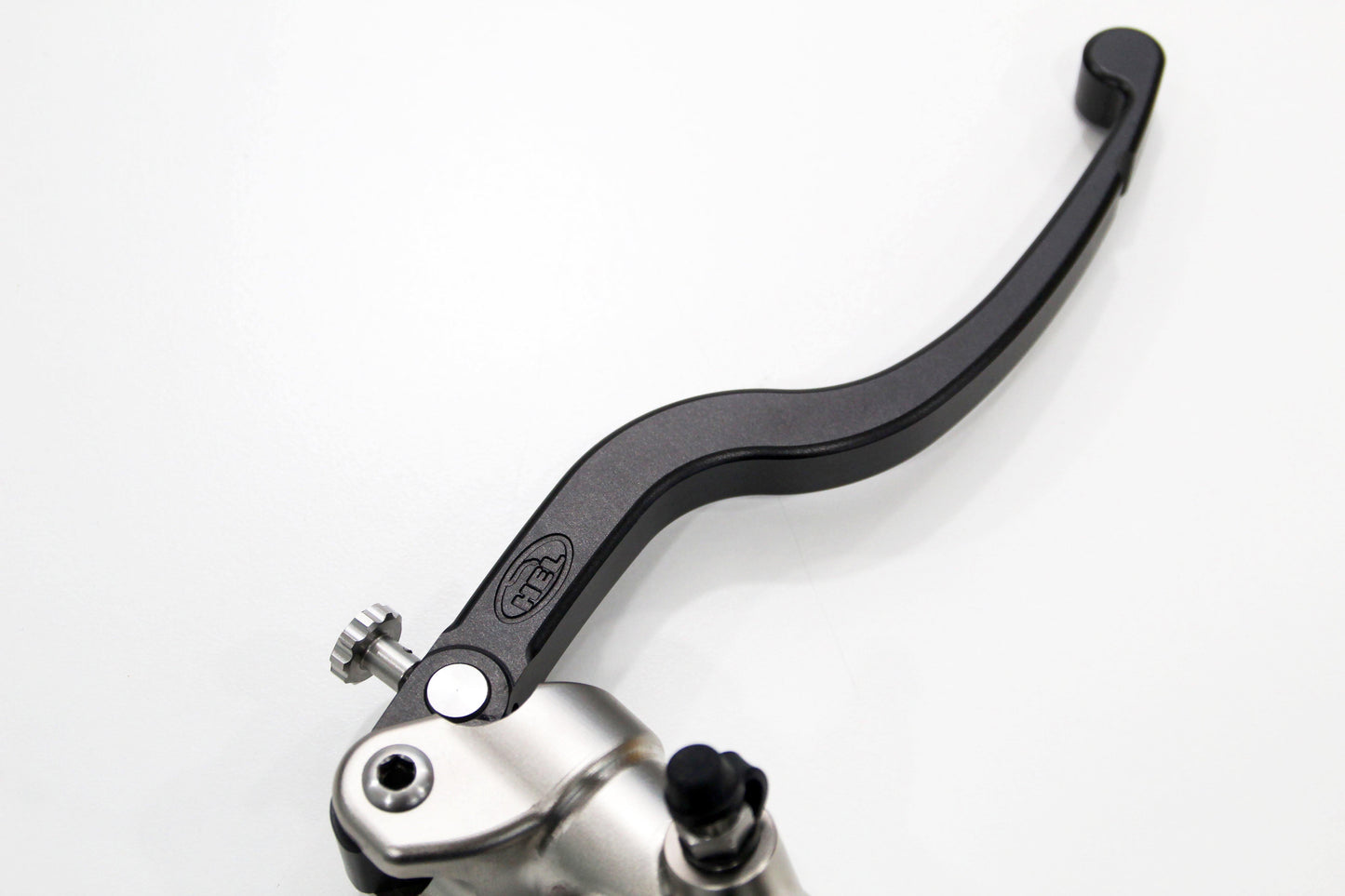

  • Each master cylinder is individually finished and assembled by hand and comes with the latest design of lever which allows three ratios from one lever.
  • The lever features a pill shaped hole into which one of two plugs are inserted, One has an offset hole – with the hole nearest the master cylinder you get a -1 ratio.
  • If you rotate the plug 180 degrees it offers you a +1 ratio and if you use the plug with a central hole you obtain a 1:1 ratio.
  • With the 19mm master cylinder, you can obtain an 18/19, 19/19 and a 20/19 from one lever and two inserts.

LEVER RATIOS : 19mm – Average lever travel but harder feel – a good all rounder

*For bike models with single calipers, HEL also offers 16MM Master Cylinder
Kindly chat or message with us for more information.*
